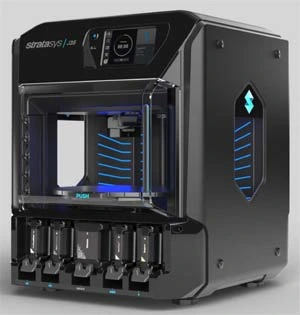

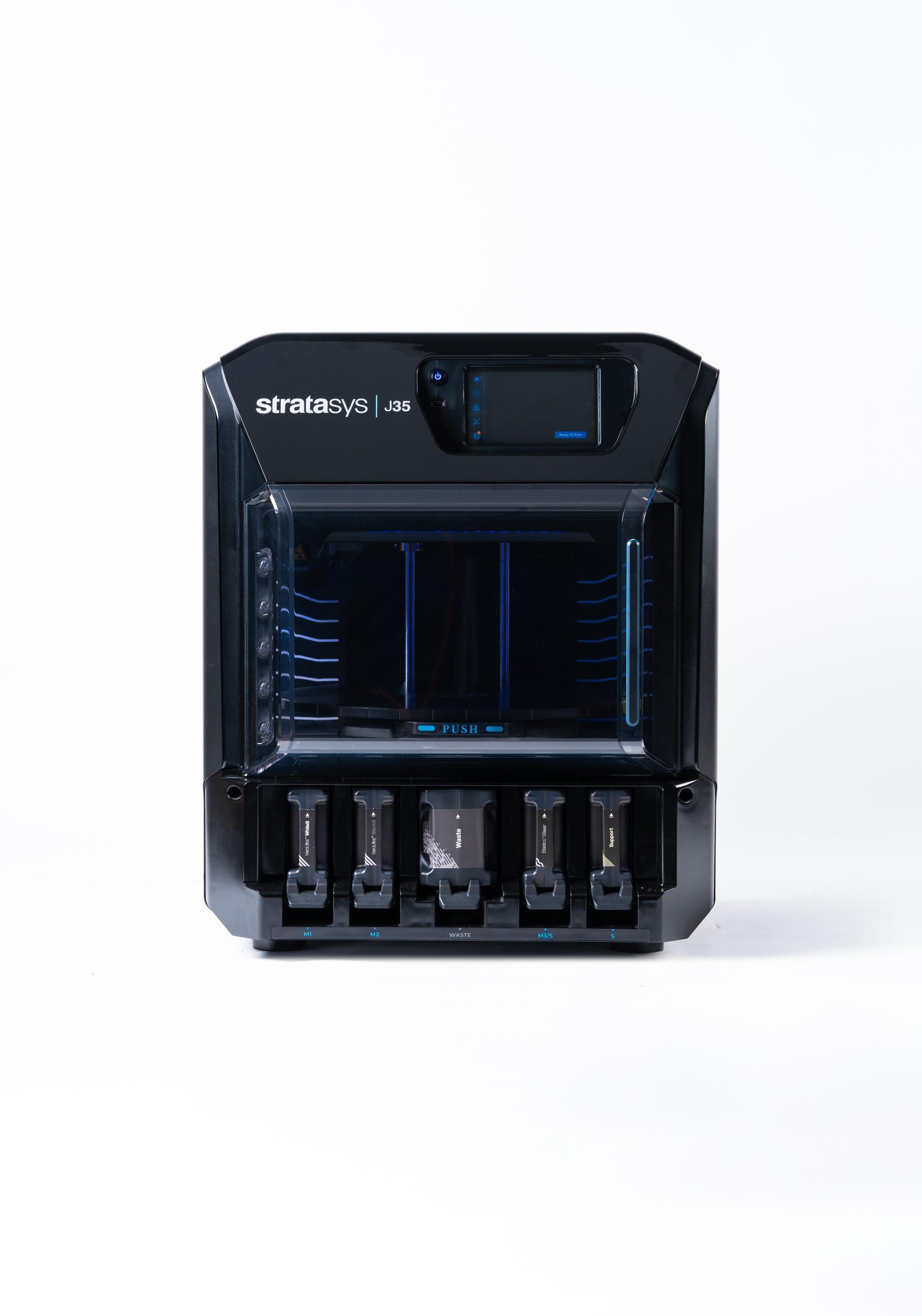

The J35™ Pro from Stratasys is a low cost PolyJet 3D Printing solution. It is suitable for shared office environment and boasts of multi-material capabilities for concept verification, gray scale visual validation and functional prototyping. Aimed for engineers and designers, the J35 Pro offers excellent technological features. It keeps moving parts to a minimum by using static print head, taking motion out of the print head that allows for consistent material jetting and results in outstanding print quality. The modelling features of the J35 pro include a transition zone with variable area based on print head radial placement that maximizes printable area while maintaining print quality. The rotating tray allows quiet and constant 3D Printing paths for faster prints and better quality of the end product.

Key Attributes

  • The J35 Pro is odour free, very quiet and compact therefore ideal for office environment
  • It offers multi materials capabilities that produce excellent print quality & fine features
  • The touch screen operation and GCP workflow make the J35 Pro easy to use
  • The UV / LED technology ensures low maintainability and high reliability

Product Details

Printer
General Rotational printing technology DM3 (4 Channels) - 3 Model and 1 Support material Digital material capabilities
Layer thickness HQS print mode at 18.75 microns (0.0007 in.)
Build size Printing area: 1,174 cm² (182 in²) Printable height: 158 mm (6.22 in)
Maximum model height 155 mm (6.1 in)
Software GrabCAD Print Internal camera Windows 10
Dimensions WxDxH: 651 x 661 x 774 mm (25.63 x 26.02 x 30.48 in) Weight: 98 Kg (216 lbs.)
Material Cartridges Kg material cartridges (same as used on J55) for each material channel
Regulatory Compliance CE, FCC, EAC, cTUVus, CB
Materials Rigid and Clear (Vero family): VeroUltraWhite VeroUltraBlack VeroUltraClearS DraftGrey
Elastico (Rubber like) Elastico™Clear Elastico™Black
Digital ABS RGD531 (Ivory) RGD515+
Support SUP710
Bio-compatible Vero™ ContactClear
Cleanser

Polyjet Technology
